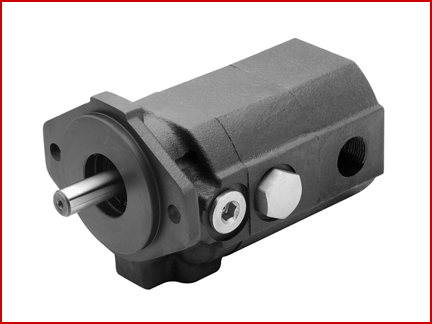

Hydraulic Gear Pump
Model GP-CBN

Model GP-CBN is a HI/LO hydraulic gear pump with 2 larger displacement combinations and maximum pressure of 900 psi for the low pressure pump and 3000 psi for the high pressure pump. The change from LO to HI pressure is automatic with the LO pressure preset from 400-900 psi. Applications for HI/LO pumps include log splitters, presses, etc. where rapid movement of the cylinder at low pressure is required prior to automatically switching to the high pressure mode to meet load requirements.

   GP-CBN Pump Catalog Page


Ordering Information







Part to order:


Model

Flow at
3600 rpm
gpm

Displacement
in³(cm³) / rev

Pressure
psi

Speed
rpm

Weight
lbs

LO

HI

LO

HI

GP-CBN-220 22 .465 (7.63) .93 (15.26) 400/900 3000 3600 18.6
GP-CBN-280 28 .465 (7.63) 1.395 (22.88) 400/900 3000 3600 19.7

See catalog page for additional details.
