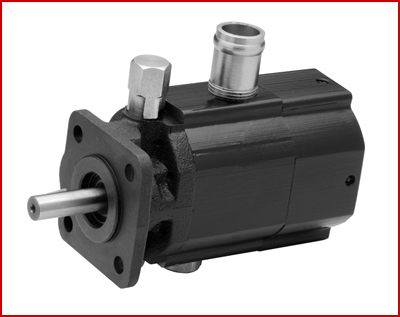

Hydraulic Gear Pump
Model GP-CBN

Model GP-CBN is a HI/LO hydraulic gear pump with 12 displacement combinations and maximum pressure of 900 psi for the low pressure pump and 3000 psi for the high pressure pump. The change from LO to HI pressure is automatic with the LO pressure preset from 400-900 psi. Applications for HI/LO pumps include log splitters, presses, etc. where rapid movement of the cylinder at low pressure is required prior to automatically switching to the high pressure mode to meet load requirements.

   GP-CBN Pump Catalog Page


Ordering Information







Part to order:


Model

Flow at
3600 rpm
gpm

Displacement
in³(cm³) / rev

Pressure
psi

Speed
rpm

Weight
lbs

LO

HI

LO

HI

GP-CBN-080 8.0 .130 (2.1) .385 (6.3) 400/900 3000 3600 8.8
GP-CBN-085 8.5 .183 (3.0) .385 (6.3) 400/900 3000 3600 9.0
GP-CBN-090 9.0 .220 (3.6) .385 (6.3) 400/900 3000 3600 9.2
GP-CBN-100 10.0 .130 (2.1) .537 (8.8) 400/900 3000 3600 9.4
GP-CBN-105 10.5 .183 (3.0) .537 (8.8) 400/900 3000 3600 9.6
GP-CBN-110 11.0 .220 (3.6) .537 (8.8) 400/900 3000 3600 9.8
GP-CBN-115 11.5 .256 (4.2) .537 (8.8) 400/900 3000 3600 10.0
GP-CBN-120 12.0 .130 (2.1) .665 (10.9) 400/900 3000 3600 10.1
GP-CBN-125 12.5 .183 (3.0) .665 (10.9) 400/900 3000 3600 10.3
GP-CBN-130 13.0 .220 (3.6) .665 (10.9) 400/900 3000 3600 10.8
GP-CBN-135 13.5 .256 (4.2) .665 (10.9) 400/900 3000 3600 10.9
GP-CBN-160 16.0 .256 (4.2) .793 (13.0) 400/900 3000 3600 11.5

See catalog page for additional details.
