Hydraulic Gear Pump

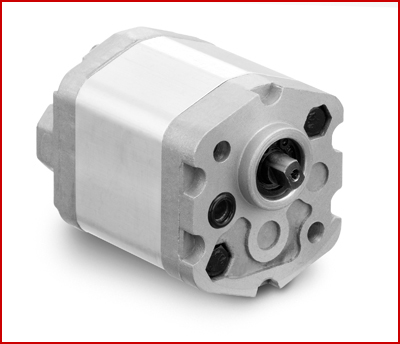

Model GP-F0

Model GP-F0 is an all-aluminum construction, high pressure, mini hydraulic gear pump with 12 displacement sizes from 0.009-0.120in³/rev. The pump has a thru bolt mount and standard flat tang drive shaft.

   F0 Pump Catalog Page


Select Your Pump Options







Part to order:


Pump Specifications

Model

Displacement
in³(cm³) / rev

Pressure

Speed

Weight
lbs

Rated

Max

Rated

Max
GP-F0-016 0.009 (0.16) 2750 3335 2000 7000 0.82
GP-F0-025 0.015 (0.25) 2750 3335 2000 7000 0.84
GP-F0-038 0.023 (0.38) 2750 3335 2000 7000 0.85
GP-F0-050 0.030 (0.50) 2750 3335 2000 7000 0.87
GP-F0-070 0.043 (0.70) 2750 3335 2000 7000 0.90
GP-F0-075 0.045 (0.75) 2750 3335 2000 7000 0.91
GP-F0-084 0.051 (0.84) 2750 3335 2000 6000 0.91
GP-F0-100 0.060 (1.00) 2750 3335 2000 6000 0.92
GP-F0-125 0.080 (1.25) 2750 3335 2000 5000 1.00
GP-F0-150 0.090 (1.50) 2750 3335 2000 4000 1.04
GP-F0-175 0.110 (1.75) 2750 3335 2000 4000 1.08
GP-F0-200 0.120 (2.00) 2750 3335 2000 3000 1.13

See catalog page for additional details.
