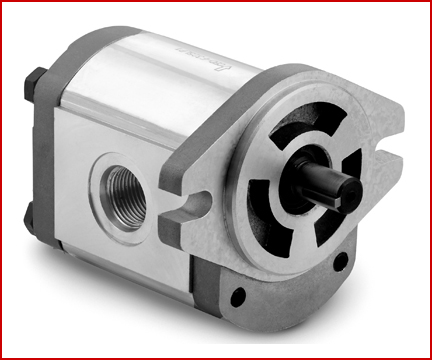

Hydraulic Gear Pump
Model GP-F20

Constructed of an aluminium center section and cast iron end plates, model GP-F20 is a high pressure hydraulic gear pump with 11 displacement size from 0.24 - 1.95 in³/rev (4 - 32 cm³/rev). The standard mounting flange is a SAE "A" 2-Bolt. Standard drive shaft is a 5/8" diameter straight shaft with an 5/32" key, but additional shaft options are available.

   F20 Pump Catalog Page


Select Your Pump Options









Part to order:


Pump Specifications

Model

Displacement
in³(cm³) / rev

Pressure
psi

Speed - rpm

Weight
lbs

Rated

Max
GP-F20-04 0.24 (4) 3650 2000 3600 7.80
GP-F20-06 0.36 (6) 3650 2000 3600 8.05
GP-F20-08 0.48 (8) 3650 2000 3600 8.25
GP-F20-10 0.61 (10) 3650 2000 3600 8.30
GP-F20-12 0.73 (12) 3650 2000 3600 8.55
GP-F20-14 0.85 (14) 3650 2000 3600 8.70
GP-F20-16 0.97 (16) 2900 2000 3600 8.85
GP-F20-20 1.22 (20) 2900 2000 3600 9.30
GP-F20-25 1.52 (25) 2900 2000 3600 9.80
GP-F20-30 1.83 (30) 2300 2000 3600 10.25
GP-F20-32 1.95 (32) 2300 2000 3600 10.50

See catalog page for additional details.

NEW: Rear Port Option

Rear port kits allow Dynamic to convert a standard side ported gear pump into a rear ported pump on demand. To purchase a rear ported pump, simply add "-BB" to the end of your part number and we'll take care of the assembly for you.

Rear port kits are also available for purchase separately to distributors with the ability and equipment to perform conversions at their facility. Please note, disassembly and conversion of the pump will void the manufacturer's warranty if done by anyone other than Dynamic Fluid Components.

Note: Rear ports are not available on displacement sizes 30 or 32. Additionally, while available on sizes 20 and 25, you will see reduced flow (from what is listed in catalog) when using rear ports on these two models.
