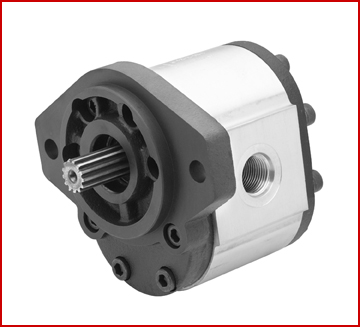

Hydraulic Gear Pump
Model GP-F25

Constructed of an aluminium center section and cast iron end plates, model GP-F25 is a high pressure hydraulic gear pump with 10 displacement size from 1.34 - 5.43 in³/rev (22 - 89 cm³/rev). The standard mounting flange is a SAE "B" 2-Bolt. Standard drive shaft is a 7/8" diameter straight shaft with an 1/4" key. Additional shaft options are available.

   GP-F25 Pump Catalog Page


Ordering Information









Part to order:


Model

Displacement
in³(cm³) / rev

Pressure
psi

Speed - rpm

Weight
lbs

Rated

Max

GP-F25-22 1.34 (22) 3625 2000 3000 9.40
GP-F25-26 1.57 (26) 3625 2000 3000 9.90
GP-F25-34 2.07 (34) 3625 2000 3000 10.60
GP-F25-39 2.38 (39) 3625 2000 3000 11.65
GP-F25-43 2.62 (43) 3625 2000 2800 12.75
GP-F25-51 3.11 (51) 3625 2000 2800 13.27
GP-F25-60 3.84 (60) 2900 1500 2800 13.64
GP-F25-70 4.27 (70) 2900 1500 2500 13.85
GP-F25-78 4.76 (78) 2900 1500 2300 14.10
GP-F25-89 5.43 (89) 2600 1500 2000 14.55


NEW: Rear Port Option

Rear port kits allow Dynamic to convert a standard side ported gear pump into a rear ported pump on demand. To purchase a rear ported pump, simply add "-BB" to the end of your part number and we'll take care of the assembly for you.

Rear port kits are also available for purchase separately to distributors with the ability and equipment to perform conversions at their facility. Please note, disassembly and conversion of the pump will void the manufacturer's warranty if done by anyone other than Dynamic Fluid Components.

Click here for additional details.
