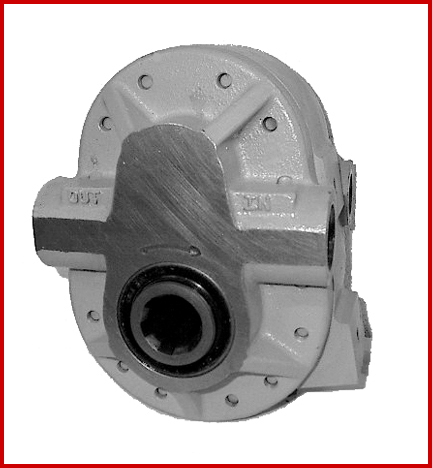

Hydraulic Gear Pump
Model GP-PTO - Side Ports

Model GP-PTO is a Power Take Off gear pump constructed with cast iron end plates and aluminium center section. It offers 4 displacement sizes from 3.41-9.76 in³/rev (56-160 cm³/rev). The standard drive is 1 3/8" diameter 6-tooth female spline.

   GP-PTO Pump Catalog Page


Ordering Information





Part to order:


Model

Displacement
in³(cm³) / rev

Pressure
psi

Speed - rpm

Weight
lbs

Rated

Max

GP-PTO-A-3 3.41 (56) 2500 540 595 33
GP-PTO-A-5 5.50 (90) 2500 540 595 36
GP-PTO-A-7 7.62 (125) 2500 540 595 38
GP-PTO-A-9 9.76 (160) 2500 540 595 40

See catalog page for additional details.
