CDS Series Dry Gauges

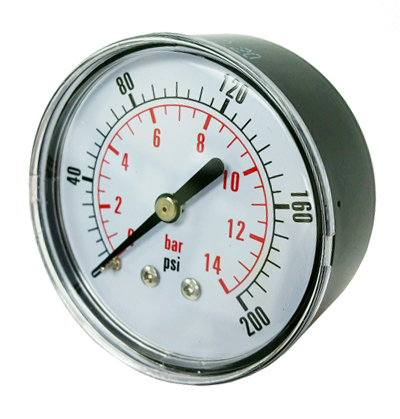

CDS Series of dry gauges offer an accurate, inexpensive options for your pressure gauge needs. CDS gauges are constructed with a steel case, bronze bourdon tube and connection and polycarbonate lens. All of our gauges come with a built-in snubber. Standard gauge faces are designed with both PSI and BAR scales in a variety of ranges from vacuum to 6,000 psi (5,000 psi for 1.5" gauges). Certificates of Accuracy are available for an additional cost.


Ordering Information













Part to order:



   CDS Gauge Catalog Page

Style A

Style D


Style B

Style E


Gauge Dimensions

Stem & Center Back Mounts: Styles A & D

Gauge Size

A

B

C

D

Connection

1.50" 1.62" 0.90" 2.26" 1.50" 1/8" NPT
2.00" 2.00" 1.08" 2.81" 1.80" 1/4" NPT*
2.50" 2.45" 1.05" 3.22" 1.75" 1/4" NPT*


Panel Mount Options: Styles B & E

Gauge Size

A

B

C

D

E

F

G

H

J

Connection

2.00" 2.25" 0.20" 1.75" 2.25" 2.05" 2.45" 2.80" 0.21" 1.15" 1/4" NPT*
2.50" 2.68" 0.20" 1.75" 3.14" 2.40" 2.85" 3.29" 0.25" 1.17" 1/4" NPT*

*1/8" NPT connections may be available by special order. Add "-8N" to end of the part number.

See catalog page for additional details.
