CF Series Glycerine-Filled Gauges

Our CF Series of glycerine-filled gauges offer an accurate, inexpensive option for your pressure gauge needs. CF gauges are constructed with a stainless steel case, bronze bourdon tube and connection and a polycarbonate lens. All of our gauges come with a built-in snubber. Standard gauge faces are designed with both PSI and BAR scales in a variety of ranges from vacuum to 10,000 psi (6,000 psi for 1.5" gauges). Certificates of Accuracy are available for an additional cost.


   CF Gauge Catalog Page


Ordering Information














Part to order:

Style A
Style D
Style B

Style E

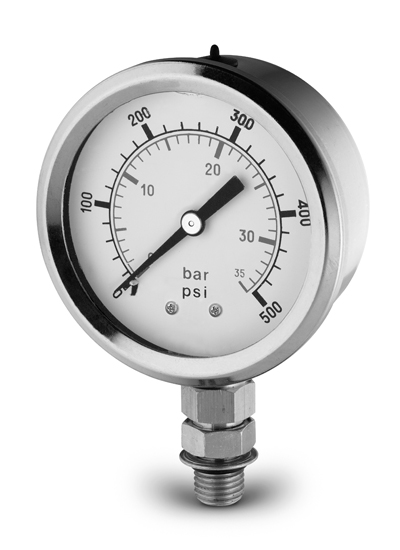

Style A-SAE
Style D-SAE


Gauge Dimensions

Stem & Center Back Mounts: Styles A & D

Gauge Size

A

B

C

D

Connection

1.50" 1.62" 0.90" 2.26" 1.50" 1/8" NPT
2.00" 2.00" 1.08" 2.81" 1.80" 1/4" NPT*
2.50" 2.45" 1.05" 3.22" 1.75" 1/4" NPT*


Panel Mount Options: Styles B & E

Gauge Size

A

B

C

D

E

F

G

H

J

Connection

2.00" 2.25" 0.20" 1.75" 2.25" 2.05" 2.45" 2.80" 0.21" 1.15" 1/4" NPT*
2.50" 2.68" 0.20" 1.75" 3.14" 2.40" 2.85" 3.29" 0.25" 1.17" 1/4" NPT*

*1/8" NPT connections may be available by special order. Add "-8N" to end of the part number.


SAE Stem & Center Back Mounts:
Only available in 2.5" size. "D" mount may have a minimum quantity order.



See catalog page for additional details.
