Test Points, Plugs, Probes and Fittings

Test Point Plugs The need for preventative maintenance of hydraulic systems in general has added to the use of test points throughout the system. This need is answered by the installation of a range of test points, plugs and probes. Where the introduction of test points is needed, and the hydraulic system uses flexible hydraulic hoses, Dynamic has a range of Hydra-Test hose couplings fitted with test points.

Dynamic Test Point Plugs and Probes


Dynamic Test Point Plugs and Probes
are designed to monitor hydraulic system conditions without system shutdown. These test plugs are fitted as "standard" into the mobile or rindustrial application where eventual system monitoring is required.

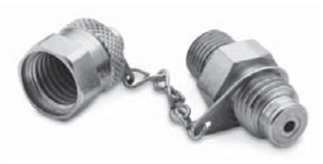

D1620 Series
Test Point Plugs & Probes

  • Connects Under Full Pressure
  • Rated at 9000 PSI
  • All Steel Construction
  • Buna Seals are Standard

D1620

DGA1620

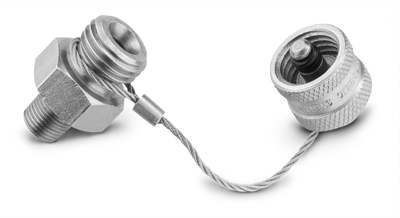

FTP Series
Test Point Plugs & Probes

  • Connects Under Full
  • Pressure Rated at 6000 PSI
  • All Steel Construction
  • Buna Seals are Standard

Test Point Plugs

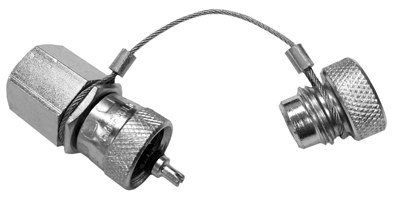

Test Point Probe




Dynamic Hose Couplings, Hose Assemblies and End Fittings

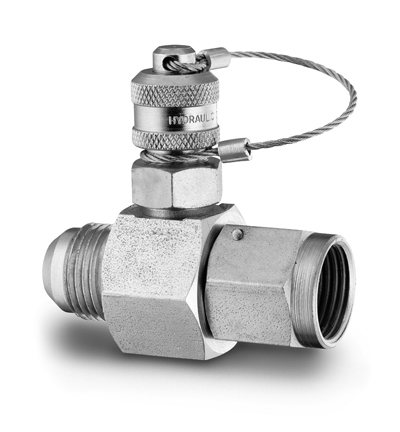

Hose Couplings

  • 6,000 PSI Working Pressure
  • Fitted with Dyna-Test Point Plug
  • Can be used with Direct or Remote Test Probes
  • For JIC 37 Hose Sizes: 7/16"-1 7/8" UNF
  • Can Connect or Disconnect at Full System pressure

DYNA-TEST J.I.C.

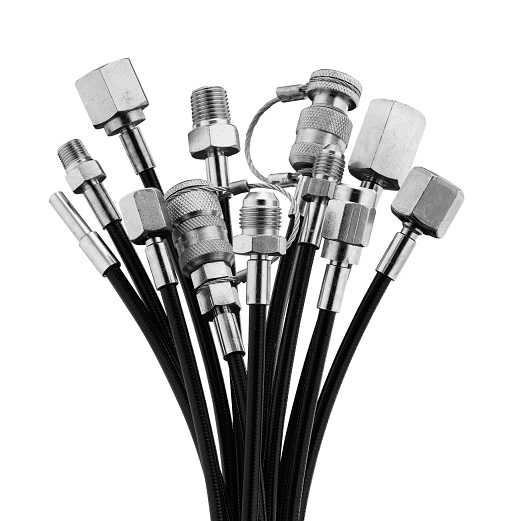

Hose Assemblies & End Fittings

  • Choice of hose length
  • Optional end fittings
  • Up to 9000 psi working pressure
  • Passivated steel components

Hose Assemblies
